Features:

• Digital Display – Digital Adjustment.
• Proportional Control with PWM output.
• Adjustable proportional band.
• Softstart (Voltage Ramping) - allows sufficient drying time to lengthen element life.
• Thermocouple ERROR indicator.
• Thermocouple TYPE “ J “ INPUT.
• Single set point control versions.
• Configurations consist of 1, 1-6, 1-12 & 1- 22 stations/zones.
• Robust thermocouple and heater cables supplied with the unit.
• All control boxes and cables are wired for the full number of stations.
• If more stations are required, simply add modules.
• Custom wiring of boxes and cables according to customers tools.
• Modules fitted with 25Amp Thyristors, capable of controlling up to 3KW heaters.
• Module face plate size ( 50 X 100 mm )
• 12 station unit dimensions 325 X 220 X 230mm

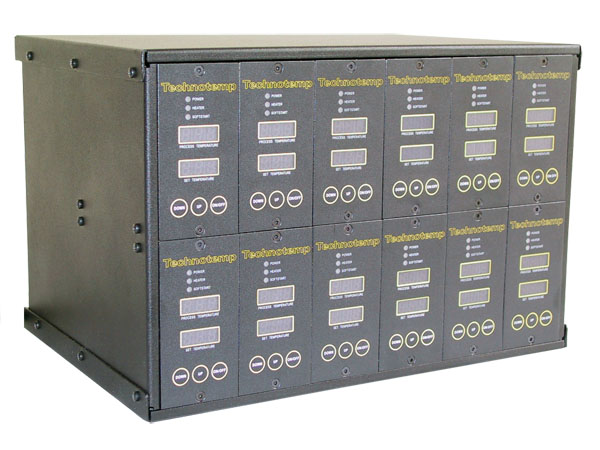

• Modules are a space saving card like construction – Slides into a robust steel and aluminium custom rack.
